# 4.2 CAD Unit Maintenance
#### **CAD Unit Maintenance**

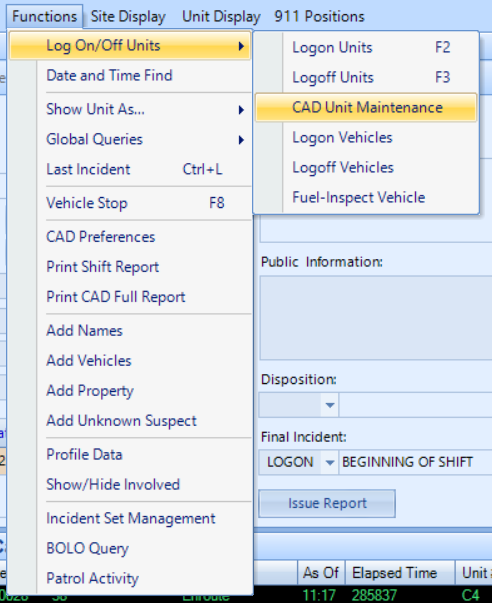

A Dispatcher can modify logged-on units through CAD Unit Maintenance. To access go to Functions\> Log On/Off Units\> CAD Unit Maintenance.

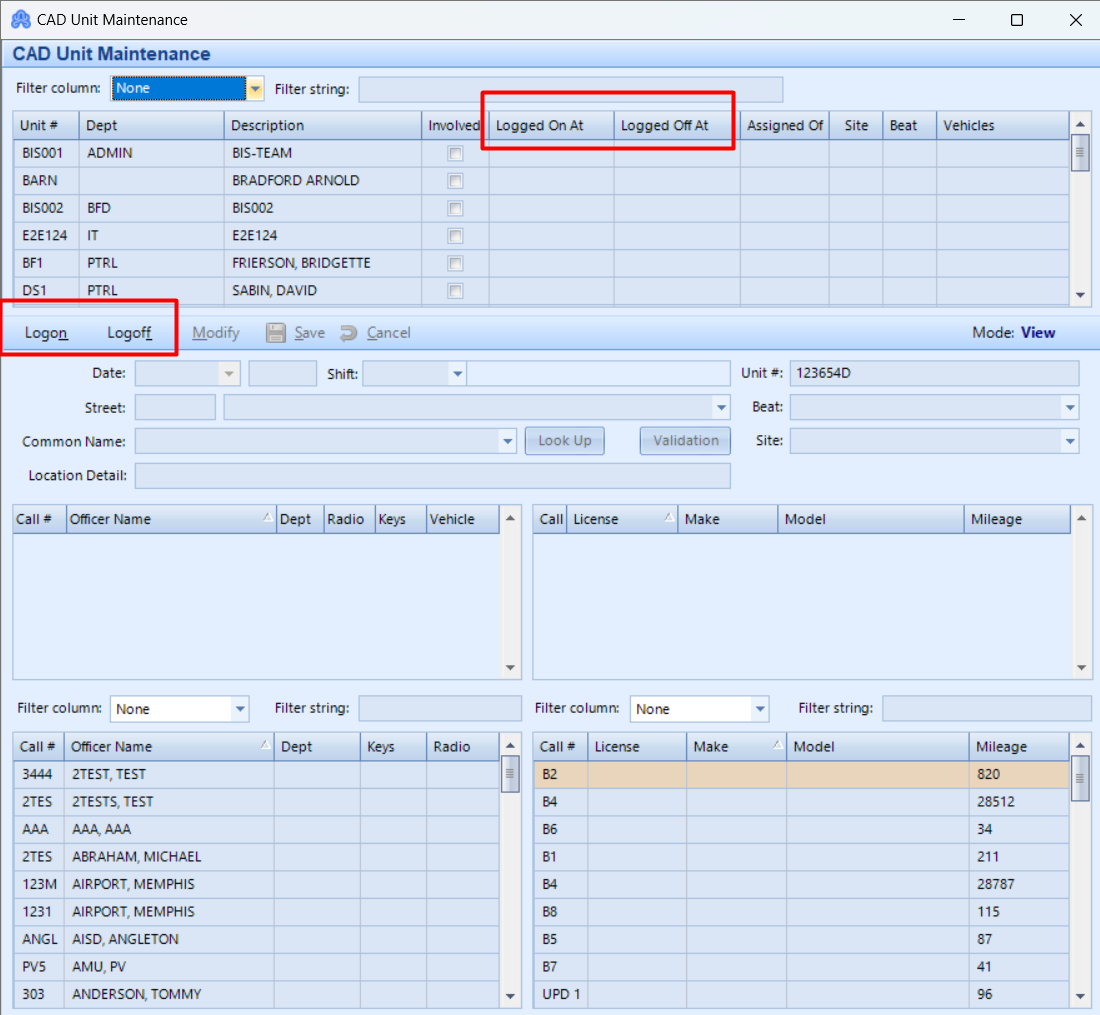

After selecting CAD Unit Maintenance, the user will be taken to a new screen that displays all logged-on units.
A dispatcher can change orders by clicking headers like Logged on At and Logged Off At. They can Log on Units, Log off units and Modify Units. If Units are logged on to the wrong beat, a dispatcher can modify them instead of logging on-off units by clicking the Modify button.
If there are any logged on units, they can be modified; if none are logged on, a Dispatcher can also log on a Unit. A dispatcher can filter units as per unit#, Dept, and Beat. The order of the table can be changed to ascending or descending by clicking on headers.

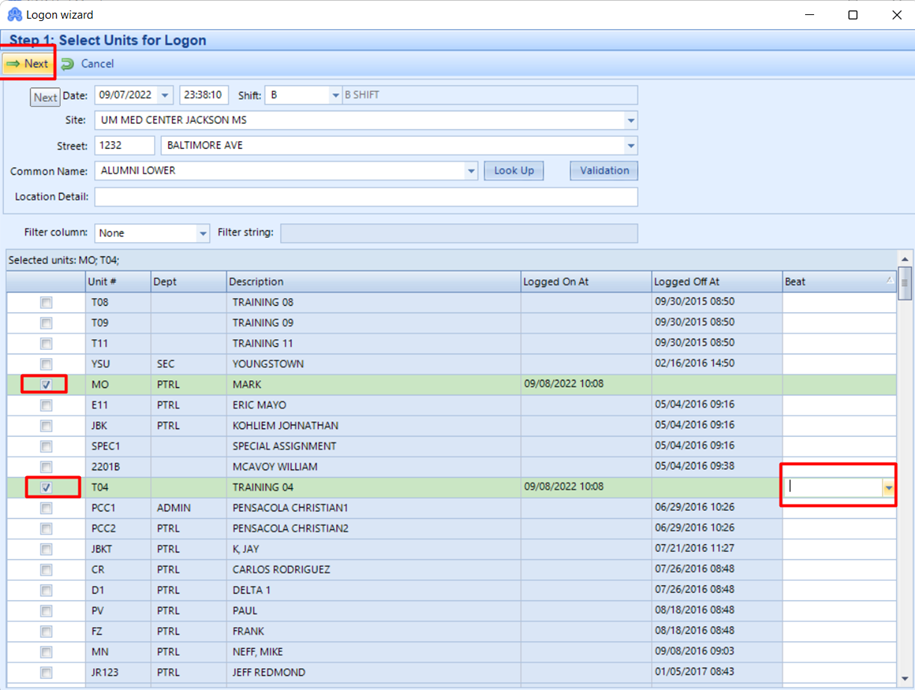

A Dispatcher can log on to a Unit by selecting the box to the left of their unit number. They can assign a unit to their respective beat. After selecting all units that the dispatcher wants to log on to, he can hit the Next button in the top left corner.
From this screen a Dispatcher/User can modify multiple fields. A Dispatcher can assign multiple people to a unit. They can add vehicles and edit mileage. If multiple people are involved on the same call then it can be tracked by adding all of them to same call or if some person is shadowing another person for a day or two then that can be added as well. After selecting Save all logged-on units will display as Available Units. To log off units select Log Off Units.
