Adding a Vehicle to a CAD Event

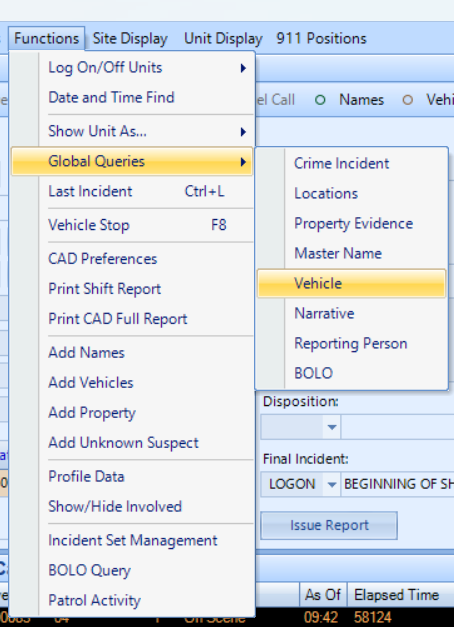

Vehicles can be added to CAD events by going to the CAD Function menus and selecting the Add Vehicles menu item.

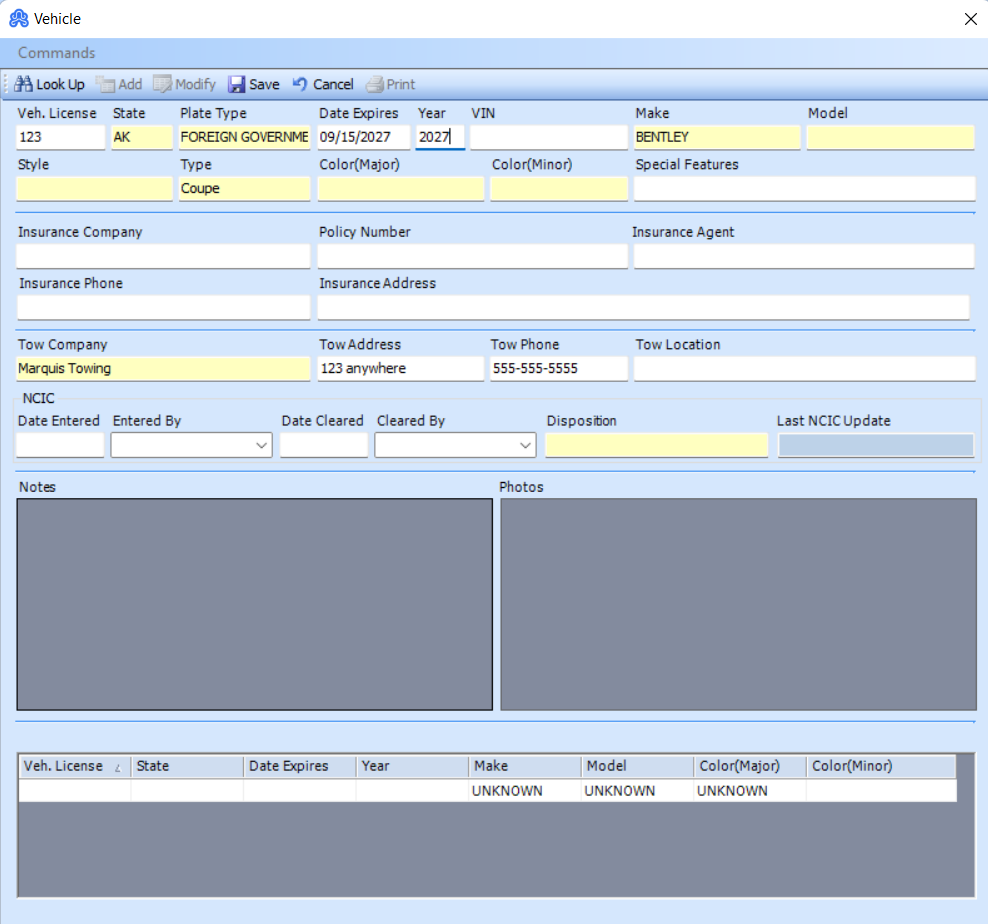

The Add Vehicles window allows users to make entries into a vehicle file that is associated with a CAD event number. The CAD Add Vehicles window will also show all vehicles that are associated with the current CAD event.
The Add Vehicles window can search for existing vehicles as well as associate additional information such as photos, Tow Company, and NCIC information.
|
Text Field |
List Value |
Description |
|
Vehicle License |
No |
The license plate number of the vehicle being added. |
|
State |
Yes |
The state that the vehicle is registered in. |
|
Date Expires |
No |
The expiration date of the license plate number. |
|
Year |
No |
The year of the vehicle being added. |
|
Make |
Yes |
The make of the vehicle being added. |
|
Model |
Yes |
The model of the vehicle being added. |
|
Color (Major) |
Yes |
The primary color that is visible on the vehicle. |
|
Color (Minor) |
Yes |
The secondary color this is visible on the vehicle. |
|
Text Field |
List Value |
Description |
|
Style |
Yes |
The style of the vehicle being added such as Pickup, or Sedan. |
|
Type |
Yes |
The type of the vehicle being added, suck as 4-door or extra- cab. |
|
Special Features |
No |
Any special features of the vehicle. These are things not covered in the list values. |
|
VIN |
No |
The VIN number of the added vehicle. |
|
Insurance Company |
No |
The Insurance company of the vehicle being added. |
|
Insurance Agent |
No |
The agent that represents the Insurance company of the vehicle. |
|
Insurance Phone |
No |
The phone number of the insurance company. |
|
Insurance Address |
No |
The address of the insurance company. |
|
Tow Company |
No |
The name of the tow company. |
|
Tow Address |
No |
The address of the tow company. |
|
Tow Phone |
No |
The telephone number of the tow company |
|
Tow Location |
No |
The location of the towed vehicle. |
|
NCIC Date Entered |
No |
The date the NCIC information was entered into the database. |
|
NCIC Entered By |
Yes |
Who is entering the NCIC information. |
|
NCIC Date Cleared |
No |
The date the vehicle is cleared. |
|
NCIC Cleared By |
Yes |
Who cleared the vehicle |
|
NCIC Disposition |
Yes |
The disposition that was given upon being cleared. |
|
Notes |
No |
Any additional notes that are needed about the vehicle. |
To add a vehicle to a CAD event:
- Choose the Add Vehicles menu item from the Functions menu. The Add Vehicles window will display in a read-only view.
- Use Ctrl+A, to change the Add Vehicles window into edit mode. The cursor will begin at the top left corner.
- Using the keyboard, begin entering any known information about the vehicle such as its License Plate, Make, and Model. For text fields shaded in yellow, type a “?” and press the TAB button to display the list values associated with that text field (if the value is known, it can also be typed in using the keyboard).
- Once all known information has been entered into the text fields, press the “Save” button. The dispatcher will notice the added name appear in the Involved Parties data grid in the top right of the window.
